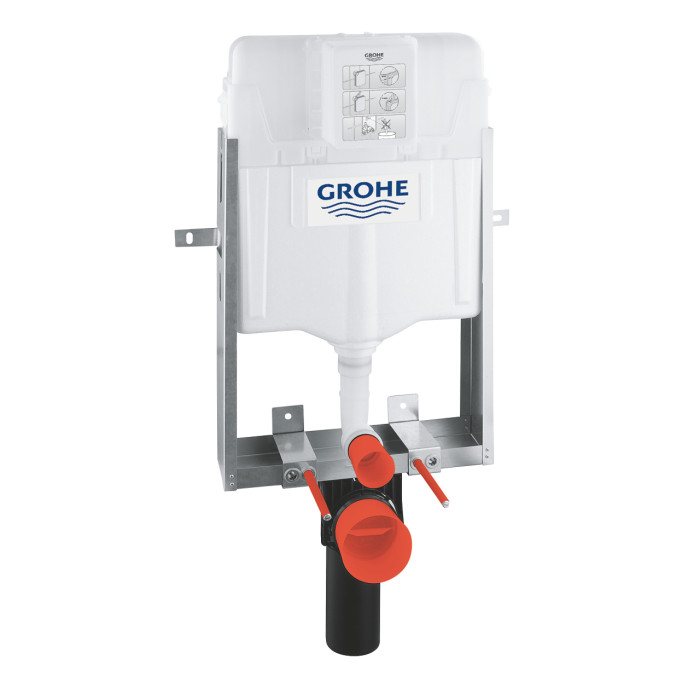

39 165 000 UNISET ELEMENT FOR WC

PRODUCT DESCRIPTION

• with flushing cistern GD 2, 6 - 9 l

• 778 x 440 x 116 mm

• for single installation

• 2 WC fixing bolts

• distance of fixing bolts 180/230 mm

• fixing device for ceramic

• outlet bend Ø 90 mm

• reducer Ø 90/110 mm

• inlet and outlet connecting set

• flushing cistern GD 2, 6 - 9 l, containing following features:

• adjustment ex factory 6 l and 3 l

• pneumatic discharge valve offering 3 modes of operation: dual flush or

start/stop or single flush

• water supply from left/right/back or top

• low noise (group I acc. to German Noise Specification)

• cistern insulated against condensation

• ½" angle valve with push fit flexible hose union

• no tools required for the installation of the inspection shaft incl.

protection during construction phase

• for vertical or horizontal use

• preparation for shower toilets with additional accessory 40 899 000 (sold

separately)

• for mounting of small flush plates please order revision shaft 40 911 000

(sold separately)
