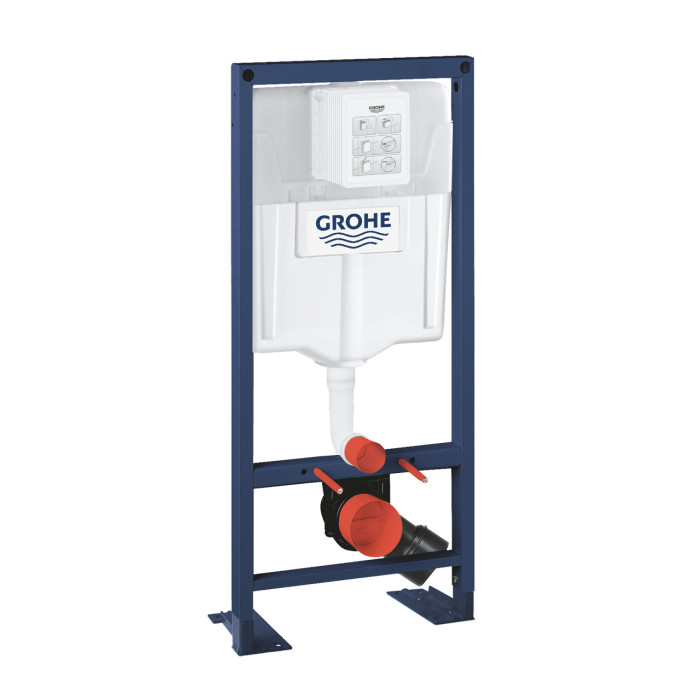

38 584 001 RAPID SL ELEMENT FOR WC, 1.13 M INSTALLATION HEIGHT

PRODUCT DESCRIPTION (1/2)

• for free-standing installation, for on-the-wall installations or studded walls

• powder coated steel frame, self-supporting

• for dry-cladding, completely pre-assembled

• with fixed connections

• lockable

• fixing material

• 2 WC fixing bolts

• fixing device for ceramic

• WC ceramics with small bearing area (< 205 mm) require 38 779 000

• distance of fixing bolts 180/230 mm

• outlet bend Ø 90 mm

• depth adjustable

• reducer Ø 90/110 mm

• inlet and outlet connecting set

• flushing cistern GD 2, containing following features:

• adjustment ex factory 6 l and 3 l

• pneumatic discharge valve offering 3 modes of operation: dual flush or

start/stop or single flush

• water supply from left/right or back

• low noise (group I acc. to German Noise Specification)

• insulated against condensation
