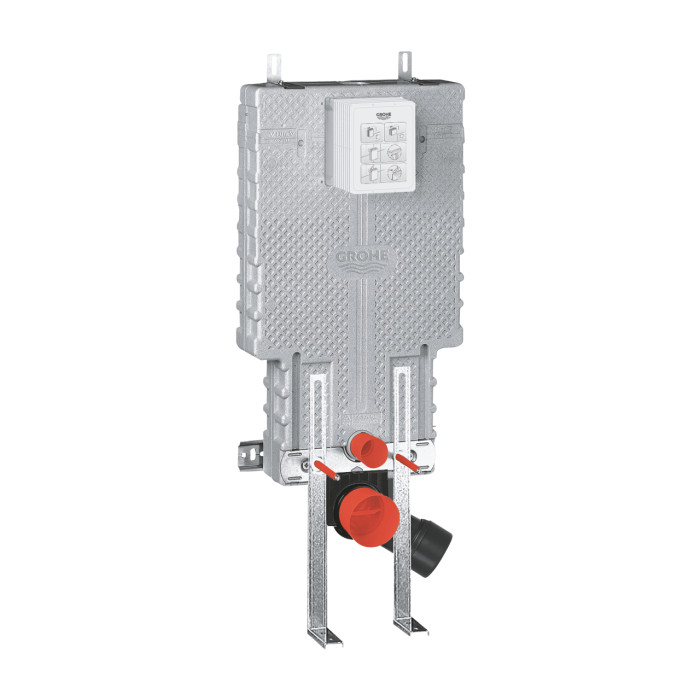

38 642 001 UNISET ELEMENT FOR WC WITH EPS HOUSING AND SUPPORT FEET

PRODUCT DESCRIPTION

• with flushing cistern GD 2 , 6 l - 9 l

• sound-insulating EPS module for masonry-in

• 830 x 470 x 130 mm

• rail adaptors for modular fixing

• wall rail with fixing accessories for single installation

• 2 WC fixing bolts

• distance of fixing bolts 180/230 mm

• fixing device for ceramic

• outlet bend Ø 90 mm

• depth adjustable

• reducer Ø 90/110 mm

• inlet and outlet connecting set

• flushing cistern GD 2, 6 - 9 l, containing following features:

• factory set 6 l and 3 l

• pneumatic discharge valve offering 2 modes of operation: dual flush or

single flush

• connection from left/right/back or top

• low noise (group I acc. to German Noise Specification)

• Insulated against condensation

• ½" water supply connection including integrated angle valve and push fit

flexible hose union

• no tools required for the installation of the inspection shaft incl.

protection during construction phase

• preparation for shower toilets with additional accessory 40 899 000 (sold

separately)

• for mounting of small flush plates please order revision shaft 40 911 000

(sold separately)
